Big capacity, slim profile; a purpose-built 12V/144Ah LiFePO₄ power and distribution system designed for long trips, tight installs and dependable off-grid performance.

TOPO 10A Mains Charger

The TOPO 10A Mains Charger is a compact, automatic 10-amp AC-to-DC unit designed for fast, safe charging of 12V LiFePO4 batteries.

Add for

Mag Board

Includes USB Bullet Adaptor.

Options: 40cm or 1m lead, Mini Black → Mini Grey or Mini Black → 50A Grey Anderson

Add for

T-MUB2-003 | TOPO MAG Series – Fused 2-Way Magnetic Power Board

Model: T-MUB2-003

TOPO T-MUB2-003 | Compact, Fused 2-Way MAG Distribution Power Board with 4 × Accessory Sockets, Switch, USB Adaptor & 1 m Cable

A tidy, robust and magnetic distribution solution for camp, boat and vehicle power; the T-MUB2-003 gives you fused outputs, easy magnetic mounting and common accessory sockets in a slim, plug-and-play module.

Add for

T-MUB2-002 | TOPO MAG Series - Fused 2-Way Magnetic Power Board

Model: T-MUB2-002

TOPO T-MUB2-002 | Compact, Switched & Fused MAG Distribution Board with 3 × Accessory Sockets, 3 × Switches, USB Adaptor & 1 m Cable

A compact, tidy and versatile 12V power distribution board designed for campers, caravans, boats and mobile setups. It gives you fused protection, magnetic mounting, switched outputs and USB charging - all in a slim plug-and-play module that installs anywhere in seconds.

Add for

T-12V-WBM

Topo's Plug & Play Wireless Battery Monitoring Indicator,

Add for

Tax included. Shipping calculated at checkout.

Description

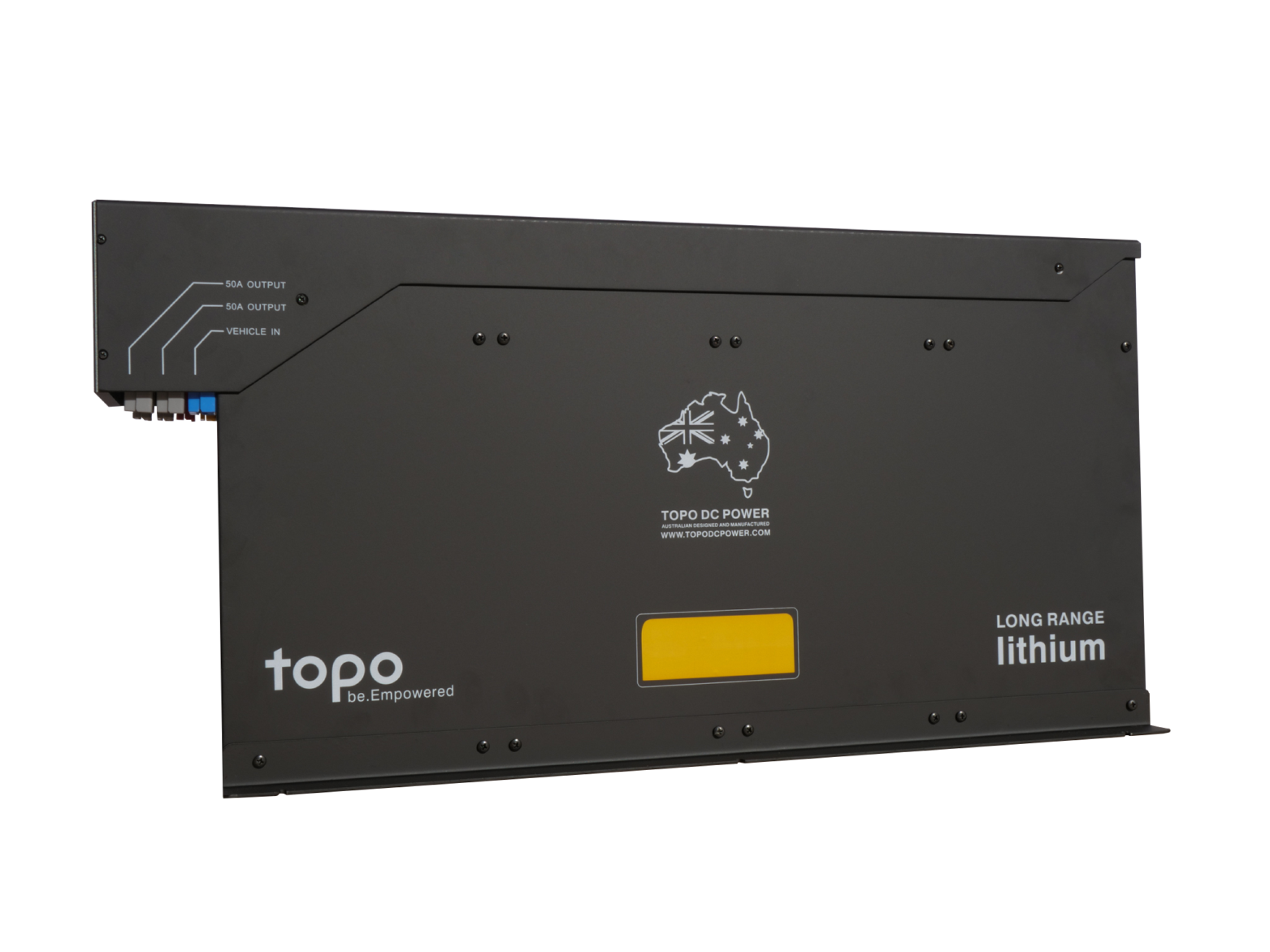

The Long Range (T-LRR-144AH-M10) is a slimline, high-capacity 12V power system that packs 1,728 Wh (144Ah) of LiFePO₄ energy into a space-saving chassis. Designed for caravans, boats, overlanders and compact installations, Long Range offers built-in 40A DC/DC vehicle charging, a regulated solar input (up to 25A), wireless monitoring and a full connector set; everything you need for a neat, safe and powerful 12V setup.

Housed in a durable steel/aluminium friendly enclosure with mounting brackets, Long Range supports fast charging from vehicle, solar and mains sources (simultaneously), while Topo’s intelligent Battery Management System (BMS) handles protection and long service life. Slim, light-on-space and heavy on runtime, Long Range is engineered to keep your fridge, lights and gear powered for longer.

True Plug & Play 12V power & distribution system
144Ah LiFePO₄ battery (1,728 Wh)
Built-in 40A DC/DC vehicle charger with voltage sense
Regulated solar input up to 25A
Wireless ready – Topo Wireless Monitor included
10A mains charger / power supply included (T-PS-1210)
Slimline footprint with mounting brackets (two orientations)
Full connector pack + 80A dual midi fuse supplied

Features:

Long Range – 12V / 144Ah LiFePO₄ Slimline System (T-LRR-144AH-M10) | Powerful, slim and ready for serious remote use.

Complete portable Plug & Play 12V power system

12V / 144Ah LiFePO₄ battery — 1,728 Wh of stored energy

Built-in 40A DC/DC vehicle charger (with voltage sense)

Regulated solar charge input — up to 25A

Wireless-ready monitoring (Topo T-12V-WBM included)

Tough mains charger / power supply (T-PS-1210) — 10A output

Mounting brackets for easy installation (two orientations)

MAG-style connector compatibility and full connector pack included

High current outputs: 2 × 50A (combined 100A) + 2 × 20A (combined 40A)

Net amp metering & State-of-Charge monitoring

Integrated intelligent BMS and magnetic circuit breaker protected outputs

Slim footprint ideal for under-bunk, drawer or tray installs

SAFE- POWERFUL- RUGGED

Built for long trips and compact installations, the Long Range 144Ah Slimline system gives you exceptional power without taking up valuable space. Let’s further explore how the it delivers smarter, stronger 12V performance:

Complete Plug & Play Power System

Long Range arrives ready to use with labelled inputs, outputs and a full connector set — no complex wiring required. The included powerboard and connectors make a professional installation simple and fast.

Massive 144Ah LiFePO₄ Battery (1,728 Wh)

Built with LiFePO₄ cells, Long Range delivers long cycle life, stable discharge performance and low self-discharge. Ideal for running fridges, lighting, inverters and tools for extended trips.

Built-In 40A DC/DC Vehicle Charger with Voltage Sense

Recharge quickly on the move with the integrated 40A DC/DC charger. Voltage sense protects your vehicle starter battery by only allowing charge when it’s safe, preventing accidental starter drain.

Regulated Solar Input (Up to 25A)

Hook up unregulated solar panels directly to the dedicated solar input and collect energy while you’re parked. The regulator handles input and delivers efficient charging to the battery bank.

Wireless-Ready Monitoring (Topo T-12V-WBM)

Topo’s wireless monitor plugs in to a 12V socket and provides hassle-free, in-range readouts of voltage and State-of-Charge. No hardwiring or mobile apps required.

10A Mains Charger / Power Supply Included (T-PS-1210)

Top up at home or at powered campsites with the compact 10A mains charger. The supply also doubles as a 12V power source for MAG distribution boards when mains power is available.

Slimline Design & Mounting Flexibility

Long Range’s low profile and mounting brackets (two mounting orientations) let you fit 144Ah into narrow spaces; under bunks, inside cupboards or on narrow tray profiles — without sacrificing capacity.

MAG-Style Distribution & Connector Pack

The system includes industry-standard Anderson and mini connectors for vehicle input, solar input and multiple outputs. Plus a fused magnetic distribution option for tidy, modular installs.

Multiple High-Current Outputs & Metering

Two 50A outputs (combined 100A) and two 20A outputs (combined 40A) provide flexible power for high-draw loads. Onboard amp metering and State-of-Charge feedback keep you informed about available energy.

Intelligent BMS & Protected Outputs

Topo’s BMS protects against over/under charging, over-discharge and thermal events. Outputs are safeguarded with magnetic circuit breakers for resettable, field-friendly protection.

Ready to power your next trip?

If you need big capacity in a slim package, the TOPO Long Range 144Ah Slimline gives you long runtimes, fast recharge options and tidy installation flexibility. Perfect for caravans, boats and tight tray spaces.

Add to Cart now to upgrade to a slimline, high-capacity 12V system built for long Australian adventures.

Category	Specification
Battery Type	LiFePO₄
Capacity	12V / 144Ah (1,728 Wh)
Model	T-LRR-144AH-M10
Dimensions	63 cm × 12 cm × 31 cm
Weight	21 kg
Built-In Vehicle Charger	40A DC/DC, Voltage Sense
Solar Input	Regulated, up to 25A
Mains Charger	T-PS-1210 — 240V AC input → 15V DC / 10A output
Outputs	2 × 12V / 50A (combined 100A) 2 × 12V / 20A (combined 40A)
Monitoring	Topo Wireless Monitor included (T-12V-WBM)
Fuse	80A dual midi fuse (vehicle charge connection)
Construction	Slimline enclosure with mounting brackets; robust materials for mobile use
Safety	Integrated BMS, magnetic circuit breaker protected outputs
Footprint	Slim profile designed for narrow installs (tray, under-bunk, cupboard)

User Manual and Support

For installation or technical questions contact Topo DC Power support.
