T-MUB2-002 | TOPO MAG Series - Fused 2-Way Magnetic Power Board

T-MUB2-002 | TOPO MAG Series – Fused 2-Way Magnetic Power Board

T-MUB2-002 | TOPO MAG Series – Fused 2-Way Magnetic Power Board

$220.00

Tax included. Shipping calculated at checkout.

Model: T-MUB2-002

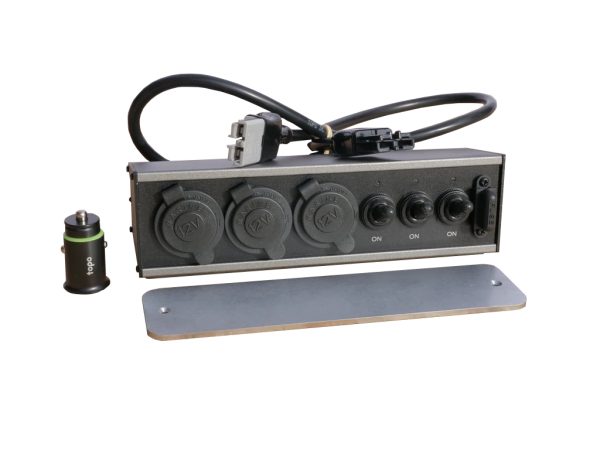

TOPO T-MUB2-002 | Compact, Switched & Fused MAG Distribution Board with 3 × Accessory Sockets, 3 × Switches, USB Adaptor & 1 m Cable

A compact, tidy and versatile 12V power distribution board designed for campers, caravans, boats and mobile setups. It gives you fused protection, magnetic mounting, switched outputs and USB charging – all in a slim plug-and-play module that installs anywhere in seconds.

Description

The T-MUB2-002 MAG Distribution Power Board converts a single 12V feed into multiple protected, switched outlets while keeping wiring neat and clutter-free. Built for TOPO lithium systems but compatible with any 12V setup, this module uses TOPO’s strong MAG magnetic mounting system. Hence, it lets you place it on any ferromagnetic surface like drawers, cargo barriers, camp kitchens, boat consoles and more.

This compact unit provides 3 CCCE / 12V accessory sockets, 3 individually controlled rocker switches, a dual USB adaptor, and a 1 m heavy-duty power cable. It comes fused for basic circuit protection and offers two connector options depending on your system:

  • Option A: 35A Black Mini → 35A Grey Mini
  • Option B: 35A Black Mini → 50A Grey Anderson (recommended for higher current feeds)

Ideal for drawers, caravans, under-dash installs, boats and touring rigs, the T-MUB2-002 delivers safe, controlled and tidy 12V distribution right where you need it.

PACKAGE INCLUDES:

  • 1 × T-MUB2-002 MAG Distribution Power Board
  • 3 × CCCE / 12V accessory sockets
  • 3 × On/Off rocker switches
  • 1 × Dual USB adaptor (USB2 / 2.3A)
  • 1 × 1 m power cable (terminated per connector choice)
  • Connector choice (select at checkout):
  1. 35A Black Mini → 35A Grey Mini
  2. 35A Black Mini → 50A Grey Anderson

Features:

A professional, user-friendly distribution solution; the T-MUB2-002 turns a single 12V source into multiple, switched and fused sockets while keeping installation clean and configurable.

The MAG magnetic mount makes position changes effortless (no drilling required), while fused outputs protect accessories from overloads. The included dual USB adaptor keeps phones and tablets charged without occupying a 12V socket.

Choose Option B (50A Grey Anderson) when you need higher current capacity or plan to move the board frequently between systems. Option A is ideal for installations using mini connectors or lower current set ups.

Fused 2-way MAG distribution power board

3 × CCCE / 12V accessory sockets (industry standard)

3 × On/Off rocker switches for individual control

Dual USB adaptor (2 × USB outputs) for device charging

1 m heavy-duty power cable for quick hookup

Magnetic MAG mounting system — stick to any ferromagnetic surface

Rugged, compact design for vehicle, caravan, boat and camp use

Two connector options for installation flexibility:

    • Option A: 35A Black Mini → 35A Grey Mini
    • Option B: 35A Black Mini → 50A Grey Anderson

SAFE- POWERFUL- RUGGED

The T-MUB2-002 combines safety, convenience and incredible mounting flexibility. Below is a breakdown of each feature and how it improves your 12V power setup:

Fused 2-Way Distribution - Safe, Protected Power

The board includes factory-installed fuses that protect accessories from overloads or faults. If a device draws too much current, the fuse isolates the circuit, preventing damage to your wiring and gear. It’s essential protection for off-grid and vehicle-based electrical systems.

3 × CCCE / 12V Accessory Sockets - Run Multiple Devices

These industry-standard sockets allow you to power fridges, lights, pumps, fans or camp accessories with ease. With three sockets available, you can run multiple devices at the same time without crowding or swapping plugs.

3 × Individual Rocker Switches - Total Control

Each socket has its own dedicated switch. This gives you full control over every accessory — turn lights on while keeping the fridge running, or shut everything off when you’re leaving camp. It also helps conserve power by isolating devices when not in use.

Dual USB Adaptor - Charge Devices Without Taking a Socket

The USB adaptor (included in the kit) adds two USB charging ports for phones, tablets, GPS units and headlamps. This frees your 12V sockets for heavier gear while keeping essentials topped up.

1 m Heavy-Duty Power Cable - Easy Connection Anywhere

A long, durable cable makes it simple to position the board in drawers, cabinets or consoles while maintaining a clean run to your battery or power system.

Magnetic MAG Mounting - No Drilling, Instant Positioning

The built-in magnetic mount allows the board to attach securely to any ferromagnetic surface. Move it, reposition it or relocate it between setups. Perfect for modular touring rigs or temporary camp layouts.

Two Connector Options - Match Your Setup Perfectly

Choose between:

• Option A: Mini → Mini (ideal for lighter loads and compact setups) • Option B: Mini → Anderson (best for higher current feeds or longer runs) Both options come pre-terminated for plug-and-play convenience.

Ready to power your next trip?

Simplify your setup and enjoy clean, controlled and protected power wherever you need it.
Choose your connector option and click Add to Cart to upgrade your 12V system with the TOPO T-MUB2-002 MAG Distribution Power Board.

Category Specification
Model
T-MUB2-002
Type
MAG Series fused distribution board (2-way)
Sockets
3 × CCCE / 12V accessory sockets
Switch
3 × On/Off rocker switch
USB
Dual USB adaptor (2 Ports)
Cable
1 m heavy-duty power cable
Connector Options
  • A: 35A Black Mini → 35A Grey Mini
  • B: 35A Black Mini → 50A Grey Anderson
Mounting
Magnetic MAG mounting
Protection
Factory-fitted fused outputs
Applications
4WD drawers, caravans, campers, boats, camp kitchens, mobile workshops

Note: For higher current loads or long cable runs, choose Option B (50A Grey Anderson). Always fuse at the battery.

For technical support or product questions, contact Topo DC Power Support.
