Ever turned your key only to hear a faint click or nothing at all? Your car battery is screaming for help.
Flat or weak batteries are one of the most common issues for drivers across Australia. Especially for 4WD and camping lovers who need their battery systems off the grid. The solution to it? Charging your car battery properly with right amp settings.
At Topo DC Power, we have spent 40+ years building tech that for tough & remote Australian conditions. From rugged dual battery setups to portable 12v battery chargers. We make it easier and safer for you to get reliable power wherever you go.
Charging Your Car Battery: Process behind it
Charging your car battery is a chemical process. Inside a lead-acid or LiFePO₄ battery are plates and electrolytes that store electrical energy. A battery charger feeds DC current and causes chemical reactions to restore energy into the cells.
When charging begins, your battery absorbs high current (bulk phase). As it nears full charge, the charger reduces the amperage in the absorption phase. Smart chargers finish with a “float” charge. That’s just enough current to maintain full capacity without overcharging.
This whole process mimics how your car alternator works but with more control. Understanding this process can help you prevent overcharging, undercharging, and long-term damage.
What You’ll Need for Charging Your Car Battery
Before you begin the process, grab these essentials:
- A reliable battery charger (smart or multi-stage)
- Personal protection gear (gloves, safety glasses)
- Access to AC mains or a power outlet (or your vehicle’s charging system)
- Cleaned battery terminals and tight cable clamps
- A fire extinguisher nearby (safety first!)
If you’re charging car battery in car with charger, make sure the area is well-ventilated and avoid flammable surfaces.
How to Charge Your Battery Safely and Properly?
Here’s what you’ll need to do.
- Prep the area: Park on a flat surface, turn off the engine and remove the key.
- Inspect the batter: Check for cracks, leaks, or swollen sides. If found, replace the battery immediately.
- Connect charger:
- Red clamp to positive terminal (+)
- Black clamp to negative terminal (–) or grounded engine metal
- Set your amp level (we’ll talk more about it below)
- Power on the charger and monitor it as it runs.
- Once charging is complete, unplug the charger first, then remove the clamps.
If you’re using a smart automatic battery charging unit, it’ll manage the charge flow and switch off when battery is full. So, you don’t have to worry about overheating or overcharging.
Understanding Amps: What Are They and Why Do They Matter?
Amps are short for amperes that is the unit of electric current. It measures the electrical current sent into the battery. Think about filling a bucket with water, amps are the flow rate.
- Higher amps = faster charging
- Lower amps = safer & more gradual charging
Setting the optimal amperage of car battery charging is important. Too low, and you’ll wait forever. Too high, and you risk frying the battery cells or boiling the electrolyte.
Just keep in mind:
- Auto battery amps depend on battery type (AGM, flooded, LiFePO₄)
- Each battery has a recommended car battery rate for optimal charging
- Always consult the battery label or manual for recommended amps
Then choose the one that suits your battery type and usage needs.

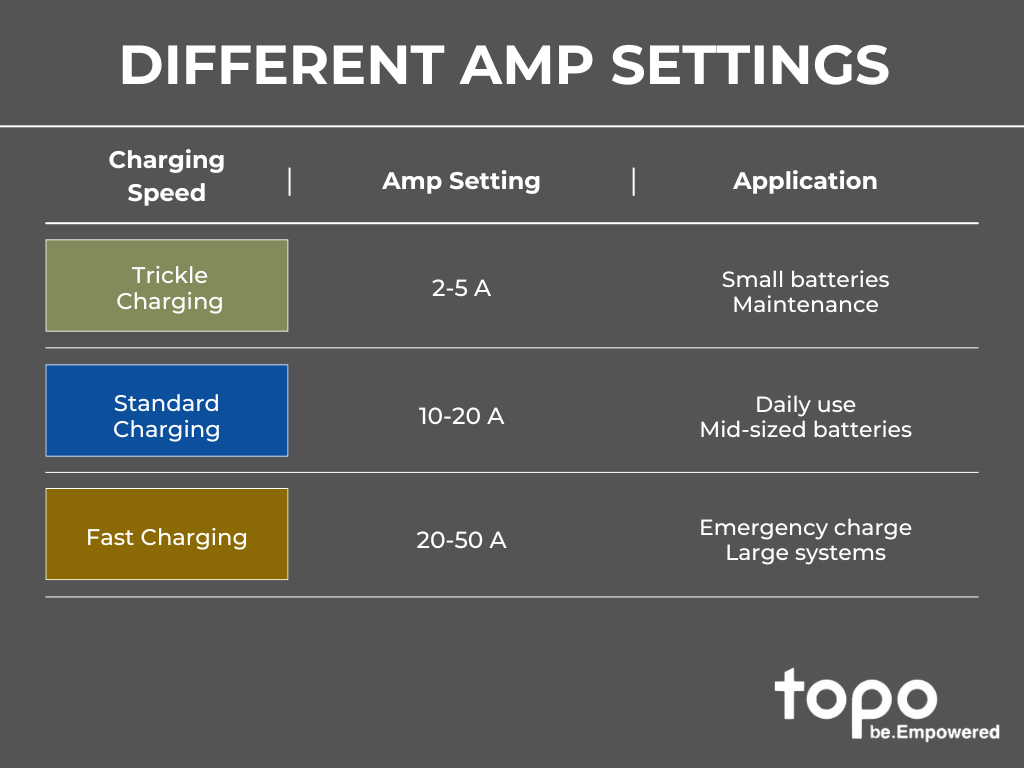

Decoding Amp Settings: Which One to Use?
There is a variety of amp levels to serve different needs. E.g.:
1. Trickle Charge (2–5 Amps)
- Best for battery maintenance
- Works well for motorcycles or small capacity batteries
- For charging overnight or during cold weather
Trickle charging keeps the battery topped up without pushing too much current. It’s slow, but the gentlest way to charge.
2. Standard Charge (10–20 Amps)
- Suitable for most cars, 4WDs and caravans
- Strikes a balance between speed and safety
- Avoids excessive heat build-up
Use a 20 amp battery charger to restore a drained battery within a few hours without causing long-term damage.
3. Rapid Charge (20–50 Amps)
- For emergencies or very large batteries
- Useful if you’re short on time
- Only use occasionally, and with caution
A 50 amp battery charger can jump a battery quickly, but also raises internal temperatures and can reduce battery life if overused.
Matching Battery to Charger Amps: What to Know
A simple rule of thumb is:
Amps = 10% of battery’s Ah rating
If your battery is 70 Ah, don’t go beyond 7 A for long charges. However, short bursts using a car battery amplifier or higher amperage is okay if done correctly.
Matching the amps for car battery means:
- Less stress on internal cells
- Smoother charge cycles
- Extended battery life
So, you’ll get optimal charging without stressing out your battery.
Pro Tips for Charging Your Car Battery
Charging requires more effort than just plugging in a charger. Follow these pro tips for a safe & effective process.
| Charging Tip | Description |
| Use smart chargers | They manage automatic battery charging phases, switching between bulk, absorption, and float modes for safer and more efficient charging. |
| Avoid overcharging | Disconnect the charger when the battery is full or keep it in float mode to prevent overheating or cell damage. |
| Keep it cool | Charge in shaded or ventilated areas to avoid overheating, which can reduce battery lifespan. |
| Monitor voltage | Use a voltmeter to keep your battery within the safe voltage range (12.6–12.8V when fully charged). |
| Check terminals | Clean off any rust, corrosion, or debris from the terminals before charging to ensure a solid electrical connection. |
| Use the right charger | Choose a reliable, multi-stage battery charger with built-in protections for safe and efficient performance. |
Remember that a little effort & precaution can save you from bigger regrets down the lane.
Can You Charge Car Battery in Car with a Charger?
Yes, you can charge it, but only if:
- The charger is designed for in-vehicle use
- Your car’s electronics are turned off
- You’re using a DC/DC charger with built-in isolation
Charging car battery in car with charger is more convenient, but safety comes first. Poor connections or incompatible systems can damage your alternator or onboard electronics.
Looking for rugged and reliable power setups?
Power Your Adventure with Topo DC Power
At Topo DC Power, we know what it takes to keep your gear running in Australia’s wildest places. Our systems are packed with features like built-in DC/DC charge, automatic battery charging, short-circuit protection, and smart diagnostics.
So, if you’re after a 20 amp battery charger, a full dual battery system built tough for remote travel, get it with just one click.
and find power that works when and where you need it most.
FAQs
What battery charger for car is best for everyday use?
A smart 12v battery charger rated between 10–20 A works best for car and 4WD batteries.
How fast will a 20 amp battery charger charge my battery?
It depends on your battery size. For a 70Ah battery, a 20 amp battery charger can recharge it in around 3–4 hours safely.
Is a 50 amp battery charger safe?
Yes, but only for emergency or short charges. Prolonged high-current charging can overheat and damage the battery.
What’s the right amperage of car battery charging?
Stay within 10% of your battery’s Ah rating. For standard cars, 5–10 amps is optimal.
Can I leave my charger connected overnight?
If using automatic battery charging, yes. Otherwise, check the charge status regularly.
6. Can I charge the battery without removing it from the car?
Yes if your system supports it. Just follow the due safety protocols.
