Imagine for a moment: You’re deep in the Australian outback. Your 4WD rolling through rugged terrain. Your fridge is humming. Your lights are bright and your GPS is guiding you along. Suddenly, the engine turns off, and you realise… your starter battery is flat. You’re stuck. Your gear is dead. You’ve lost power at the worst possible moment.
Sounds like a nightmare, right? But it doesn’t have to be!
Here comes 4WD dual battery system setup. This powerful, off-road power solution is a game-changer for anyone who loves camping and 4WD adventures.
This guide will help you explore everything you need to know about setting up a dual battery system for 4WD. From understanding how it works to installing it yourself, you’ll be ready to run your gear on-the-go.
Scroll down to learn how to keep your off-road adventures powered and your equipment running smoothly.
What is a 4WD Dual Battery System?
A 4WD dual battery system is an essential upgrade for anyone who loves to hit the road less traveled. It is a secondary battery system that power your off-road camping. It consists of two batteries:
- one for powering your vehicle
- another for running off-road accessories like fridges, lights, and communication equipment.
Why Have Dual Battery System for 4WD?
A 12V dual battery setup ensures you never run out of power when camping or off-roading.
Off-road trips require powering up devices like fridges, lights, and communication equipment. The 4×4 dual battery setup ensures your fridge keeps your food cold, your lights stay bright, and your devices stay charged. No matter how far off the grid you are.
One of the biggest fears when venturing into the wild is coming back to a dead starter battery. With a dual battery install, you can rest easy knowing that your main battery is isolated from all the accessories that might drain it. Your vehicle will always start, even after days of off-roading or camping.
Additionally, dual battery system enhances the overall efficiency of your vehicle’s electrical system. With less strain on the starter battery, it lasts longer, and your off-road power solutions become more flexible.
How Does a Dual Battery System Work?
A 4WD dual battery system is the secret to energising your off-road equipment without draining your starter battery in your vehicle. It leaves your main battery for starting your engine, with the auxiliary battery powering your accessories such as fridges, lights, and the rest.
Here’s an easy explanation of how it works:
-
Main Starting Battery: The Engine’s Power Source
The starting battery is used to start your engine. It delivers the initial power boost required to crank your vehicle. The battery is separated from your other accessories so that it remains always ready to start the engine.
-
Auxiliary Battery: Powering Your Gear
The auxiliary battery is your primary source for running off-road devices like fridges, lights, and communication equipment. In line with your vehicle’s network, it ensures that your accessories never tap into the main battery. Normally, a deep-cycle Lithium battery is used here, as it does not lose functionality when discharged repeatedly.
-
Battery Isolator to Keep the Batteries Separate
The battery isolator guarantees that your starter battery and auxiliary battery never interfere. During engine shutdown, the isolator isolates the batteries, so you can’t drain your starting battery accidentally.
-
Charging Both Batteries to Keep Power Flowing
The alternator in the car recharges both the main and auxiliary batteries as the engine is running. The battery isolator first charges the main battery. After it’s charged to capacity, the surplus power is transferred to the auxiliary battery, keeping all filled up for your off-grid escapades.
-
Voltage Sensing to Protect Your Batteries
Today’s dual battery systems come with voltage-sensing technology. This keeps an eye on both batteries’ voltage and prevents the main battery from running too low. When it does, the system will disconnect the auxiliary battery, so your vehicle won’t be left stranded.
-
Manual or Automatic Control
Some systems allow you to control when to disconnect the batteries manually. Whereas, more sophisticated ones do it automatically based on criteria such as the engine status and battery levels. Either way, you have the peace of mind that the system is acting for you.
How to Set Up Your 4WD Dual Battery System | Step-by-Step Installation Guide
Installing a 4WD dual battery system may seem intimidating. But if you have the right tools and follow a good guide, it’s a DIY job anyone can do. Installing an off-roading or camping battery system? Here’s a simple process to guide you through.
Tools and Equipment You’ll Need
Before you start with the installation, collect these necessary tools and parts:
- Auxiliary battery (AGM, LiFePO4, or deep-cycle lead)
- Isolator / Voltage Sensitive Relay (VSR) or DC-DC charger
- Heavy-duty battery cables and lugs
- Anderson plug (for portable kits)
- Fuses or circuit breakers and good earth points
- Multimeter, crimper, heat-shrink, cable ties and mounting hardware
4WD Dual Battery Installation: Setting Up Your Power System
After you have everything prepped, take the following steps to install your DIY dual battery setup with simplicity.
-
Mount Your Auxiliary Battery
Find a secure, safe area where you can mount your auxiliary battery in your vehicle where there is enough room and length in your wiring to perform the connections.
-
Disconnect Your Starter Battery
Disconnect the main starting battery for safety purposes before you start doing anything to prevent electrical shorts or accidents.
-
Install the Voltage Sensitive Relay (VSR)
Position the VSR near your main battery but not near hot or moving components. It will regulate the power flow between the two batteries. It’s essential to install it correctly for optimal function.
-
Prepare and Cut Your Cables
Cut the cables to the correct length to connect your components. Strip about 15mm of insulation from each wire. Then attach the lugs (small metal connectors) to the bare ends using a crimping tool.
-
Seal Your Connections
After crimping the lugs, slide heat shrink tubing over each connection and use a heat gun to shrink it, creating a waterproof and secure seal.
-
Ground the Relay with the Black Wire
Connect the VSR’s black wire to a solid ground location on your car so that the relay can work as expected.
-
Connect the Main Battery to the VSR
Now connect the main battery of your car to the VSR so power can be transferred between the two batteries whenever it is needed.
-
Ground the Auxiliary Battery
Now, ground the secondary battery by connecting its negative terminal to a firm, clean metal surface on your car.
-
Mount the VSR to the Mounting Plate
Mount the VSR onto its mounting plate. Ensure positive cables are only coupled with the auxiliary battery, and not both batteries simultaneously.
-
Couple the Negative Leads
Connect the negative cables to both batteries, first the main starting battery, and then to the auxiliary battery. This provides a firm and safe grounding.
-
Test the System
Lastly, use a multimeter to verify that the dual battery system works as intended. You should obtain the appropriate voltage readings to ensure that both batteries are charged and working correctly.
Common Mistakes to Avoid When Installing a Dual Battery Setup
Installing a dual battery system is easy, but there are common errors to shun:
- Incorrect Battery Location: Select a location for your auxiliary battery that is readily accessible and safe.
- Poor Wiring Selection: Use quality, thick cables to serve as buffers for the power load.
- Not Using an Isolator for Dual Battery: Never fit a dual battery setup without an isolator. This is fundamental in order not to drain your starter battery.
- Using the Incorrect Battery: Select the correct battery type (AGM, Lithium) to suit your power requirement for the best set-up.
How to Maintain Your 4WD Dual Battery System | 12 Easy Tips for Long-Lasting Power
Your 4WD dual battery system powers your adventures, but as with any part of your vehicle, it does require some attention to keep it in good working order. Here are some easy tips for dual battery maintenance:
- Regularly Check Connections – Examine battery terminals. Check for corrosion or loose connections and clean or tighten as necessary. Check that all wiring is in good shape and replace any broken cables.
- Keep Your Charging System in Check – Check that your alternator is charging both batteries effectively. If there’s a problem, have it checked. Check that your charger is performing well and charging the auxiliary battery correctly.
- Keep Your Batteries Clean – Keep both batteries clean of grime and dirt. If you’re using lead-acid batteries, check fluid levels and add distilled water if needed.
- Test the Battery Isolator – Test your battery isolator occasionally to make sure it’s keeping the batteries properly separated when the engine is off.
- Manage Battery Usage – Don’t run accessories for too long when the engine is off to avoid draining the main battery. Watch out for your battery capacity when you’re using heavy-duty appliances, to prevent over-discharging.
- Balance Battery Charges – If you’re using varying battery types (e.g., Lithium and AGM), balance the charges so that both batteries are healthy and running well.
- Perform Load Tests – Test both batteries periodically to verify their capacity and detect any signs of wear.
- Maintain Solar Panels (If You Have Them) – If your configuration involves solar charging, maintain clean panels and see that they receive adequate sunlight.
- Be Prepared for Emergencies – Always keep jumper cables or a portable jump starter on hand in case your primary battery drains.
- Drive to Charge Batteries – Drive your 4WD frequently to ensure both batteries are charged by the alternator.
- Keep a Record – Maintain a record of maintenance, repair, and inspections for future purposes.
- Get Professional Assistance When Necessary – If something is unclear, seek help from a professional to ensure your system is in the best working condition.
How to Choose the Right Dual Battery System for Your 4WD
Choosing the best 4WD dual battery system depends on a few key factors that will vary from person to person. Here’s a simple breakdown to help you select the best system for your needs:
1. Determine Your Power Needs
Start by asking yourself: How will you use your dual battery system?
Will you be using it for:
- Off-road adventures?
- Camping trips where you need to power fridges, lights, or other electronics?
- Running accessories, like winches or air compressors?
So, first understand your power consumption to choose the right setup based on how much power you need to run your devices.
2. Consider Your Vehicle Type and Available Space
Not all vehicles are created equal, and neither are their electrical systems. When selecting a dual battery system, take into account:
- Space availability: Do you have enough room for both batteries and the necessary components?
- Electrical capacity: Can your 4WD handle the extra load without compromising performance?
- Mounting location: Can you easily install the system, or will you need professional help?
Your vehicle’s setup and available space will dictate which system works best for you.
3. Choose the Right Battery Type
The battery you choose plays a huge role in how well your dual battery system performs. Here’s a quick comparison of the main types of batteries you can consider:
| Battery Type | Best For | Pros | Cons |
| AGM Battery |
|
|
Can be bulky and less efficient than lithium |
| Lithium Battery |
|
|
More expensive and sensitive to heat |
| Lead Deep Cycle Battery |
|
|
Shorter lifespan if not fully discharged |
4. Consider Battery Capacity, Longevity, and Weight
When choosing a battery, keep these factors in mind:
- Capacity: Make sure the battery can handle the power requirements of your gear without running out too soon.
- Longevity: A long-lasting battery is important for consistent performance. Lithium batteries tend to have the longest lifespan, but they come at a higher price.
- Weight: Lithium batteries are lighter, but if weight is less of a concern, an AGM or lead battery might be more cost-effective.
5. Set Your Budget
Dual battery systems range from DIY-friendly and budget options to professional-grade setups that can be more expensive. It’s important to decide your budget ahead of time and find the best dual battery system for 4WD that fits within it.
6. Research Brands and Quality
When choosing a battery system, always look for trusted brands with a good reputation for reliability and performance. Checking out reviews and asking for recommendations from other off-road enthusiasts can give you valuable insights into which brands and models are the best.
7. Look for Extra Features
Consider additional features that could make your setup more efficient:
- Battery Management System (BMS): Helps monitor and protect your batteries.
- Voltage Sensing Relay (VSR): Automatically manages battery charging.
- Solar Charging Capability: Allows you to recharge your batteries via solar power, making it a great off-grid option.
- Monitoring Systems: Keep track of your battery health and performance with a monitoring system.
These features can make a huge difference in efficiency and ease of use.
8. Installation: DIY or Professional?
Finally, consider how comfortable you are with installing the system yourself. DIY setups can save money, but they require some technical know-how. If you’re not confident, you may prefer to have a professional handle the installation.
Topo DC Power’s Best Dual Battery Setups for 4WD

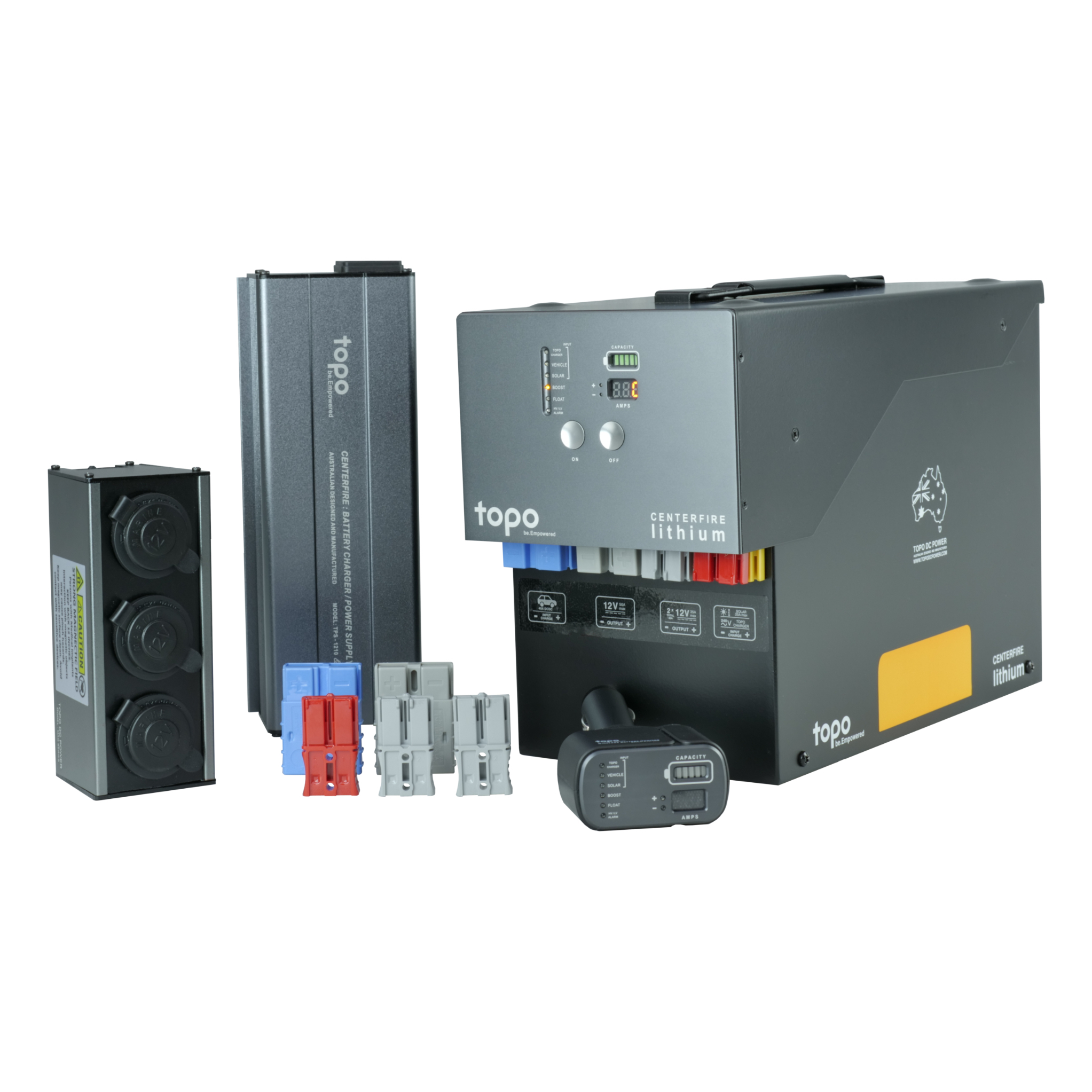

Once you’ve considered the factors above, you can check out these popular 4WD dual battery kits for reliable off-road performance:
These kits are designed for easy installation and robust power solutions that will keep your 4WD ready for adventure.
Worried about dead batteries when you’re off-roading or camping? Don’t let power failures ruin your trip.
Set Up Your 4WD Dual Battery System with Topo DC Power
Your adventure deserves reliable power. Whether you’re off-roading, camping, or exploring, make sure your gear stays powered with a professional dual battery setup.
Get in touch for personalised advice or browse our range of dual battery systems to find the perfect solution for your needs.
Shop Dual Battery System Online Now
FAQs for 4WD Dual Battery Setup Australia
- How much does it cost to install a 4×4 dual battery setup in Australia?
The cost of installing a 4×4 dual battery system in Australia typically ranges from $700 to $3000 or more. Prices depend on factors such as the battery type, the complexity of installation, and whether you go for a DIY kit or professional installation.
- How do I prevent my 4WD battery from going flat when camping?
To avoid a flat 4WD battery when camping, install a dual battery system. This keeps your main battery isolated from the auxiliary battery, which powers your camping gear like fridges and lights. Using a battery isolator ensures your starter battery never gets drained while you’re running accessories.
- What is the difference between AGM and Lithium batteries for dual battery systems?
AGM (Absorbent Glass Mat) batteries are more affordable, durable, and work well for moderate off-road use. But they are heavier and have a shorter lifespan than Lithium batteries. Lithium-ion batteries are lighter, more efficient, and last longer but come at a higher price.
- Can I run a fridge off my 4WD dual battery system?
Yes, you can run a fridge off your 4WD dual battery system. The auxiliary battery is designed to power high-draw accessories like fridges, lights, and electronics, without draining the main starting battery.
- How do I install a dual battery system?
To install a dual battery system, you’ll need to mount your auxiliary battery. Connect it to your main battery using a battery isolator and heavy-duty wiring. Ensure proper grounding. You can either choose a DIY dual battery setup or have a professional install it. Make sure to follow the manufacturer’s instructions for wiring and components. Regularly test your system to ensure everything works correctly.
