A TRUE PLUG & PLAY PORTABLE POWER SOLUTION PATENT PENDING & INTERNATIONAL REGISTERED DESIGN AUSTRALIAN OWNED MADE AND DESIGNED A GRADE LIFEPO4, PRISMATIC CELLS- IEC 62619 COMPLIANT POWERFUL AND PORTABLE, 12V/100AH , 1280Wh @ 10Kg’s SEALED IN A HIGH IMPACT, UV RESISTANCE, WATERPROOF CASING ACCEPTS 3 WAY CHARGING MAINS, SOLAR, VEHICL

Standard Continuous Discharge Current 50A -100A Max Pulse Discharge Curent 200A (<30Sec) Recommended Volt. Disconnect 12V Discharge Temperature -20 – 60°C BMS Low Volt. Cut-off 11V DC BMS High Temperature cut-off 65°C

Standard Charge Current 50A – 100A Max Recommended Volt. Disconnect 14.2V DC Charging Temperature 0 – 55°C BMS High Volt. Cut-off 14.2V DC BMS High Temperature cut-off 65°C

Device Power Consumption Estimated Usage Phone 10Wh ~120+ charges Fridge 12-30Wh ~40-105 hours Laptop 75Wh ~16 charges Mirrorless DSLR 75Wh ~16 charges Tablet 20Wh ~60 charges Drone 75Wh ~16 charges Action Cam 5Wh ~250+ charges Light 5-10Wh ~125-250 hours TV (32") 40Wh ~30 hours Induction Top 1500Wh ~50 minutes of cooking Electric Kettle 1000Wh ~1.2 hours Portable Fan 20-50Wh ~25-60 hours Heated Blanket 50Wh ~25 hours Speaker (Portable) 20Wh ~60 hours Electric Cooler 45-60Wh ~20-28 hours Calculation Details: Battery Energy : 12.8V × 100Ah = 1280Wh Device Runtime : Runtime (hours) = Device Power Consumption (W) /Battery Capacity (Wh)

Tinny Mate Giveaway - Topo DC Power

Q: CONNECTOR AND DISPLAY

Power Waterproof On/Off button switch Display : Waterproof LCD display Built-In, State of Charge monitoring Built-In, Volt & Amp monitoring Built-In, Charge & Discharge status Input / Output Anderson 12V / 50A (Grey) Anderson 12V / 50A (Grey) Anderson 12V / 120 A (Grey)

Q: ELECTRICAL PARAMETERS

Nominal Voltage 12.8V DC Rated Capacity 100Ah Energy 1280Wh Cycle life >3000 cycles @ 1C, 80%DOD Self Discharge < 5% per month Battery in Series / Parallel 2S/2P IP Rating IP66

Q: CHARGE PARAMETERS

Standard Charge Current 50A – 100A Max Recommended Volt. Disconnect 14.2V DC Charging Temperature 0 – 55°C BMS High Volt. Cut-off 14.2V DC BMS High Temperature cut-off 65°C

Q: DEVICE USAGE

Device Power Consumption Estimated Usage Phone 10Wh ~120+ charges Fridge 12-30Wh ~40-105 hours Laptop 75Wh ~16 charges Mirrorless DSLR 75Wh ~16 charges Tablet 20Wh ~60 charges Drone 75Wh ~16 charges Action Cam 5Wh ~250+ charges Light 5-10Wh ~125-250 hours TV (32") 40Wh ~30 hours Induction Top 1500Wh ~50 minutes of cooking Electric Kettle 1000Wh ~1.2 hours Portable Fan 20-50Wh ~25-60 hours Heated Blanket 50Wh ~25 hours Speaker (Portable) 20Wh ~60 hours Electric Cooler 45-60Wh ~20-28 hours Calculation Details: Battery Energy : 12.8V × 100Ah = 1280Wh Device Runtime : Runtime (hours) = Device Power Consumption (W) /Battery Capacity (Wh)

ENTER TO WIN

inny Mate + Fridge Mate + Mains wallet charger + Mag Board – Worth $1300+ Proudly Aussie-Designed – Aussie-Made – Aussie-Born – Aussie-Owned

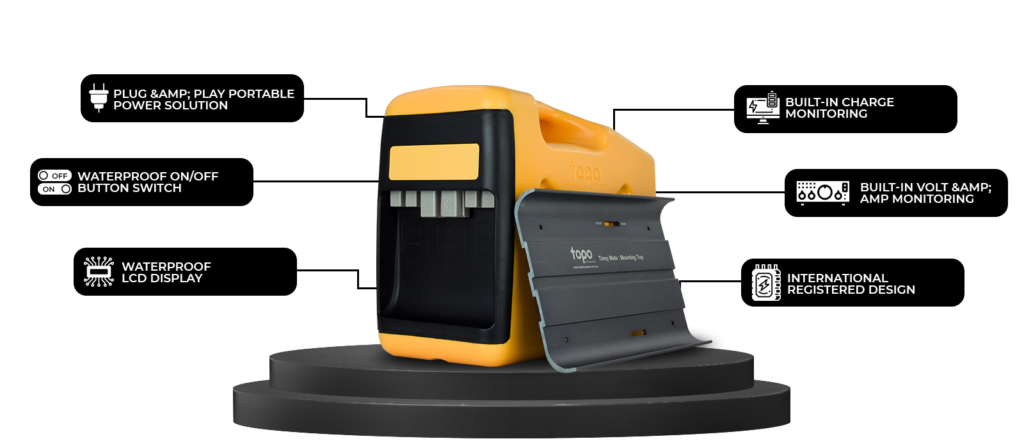

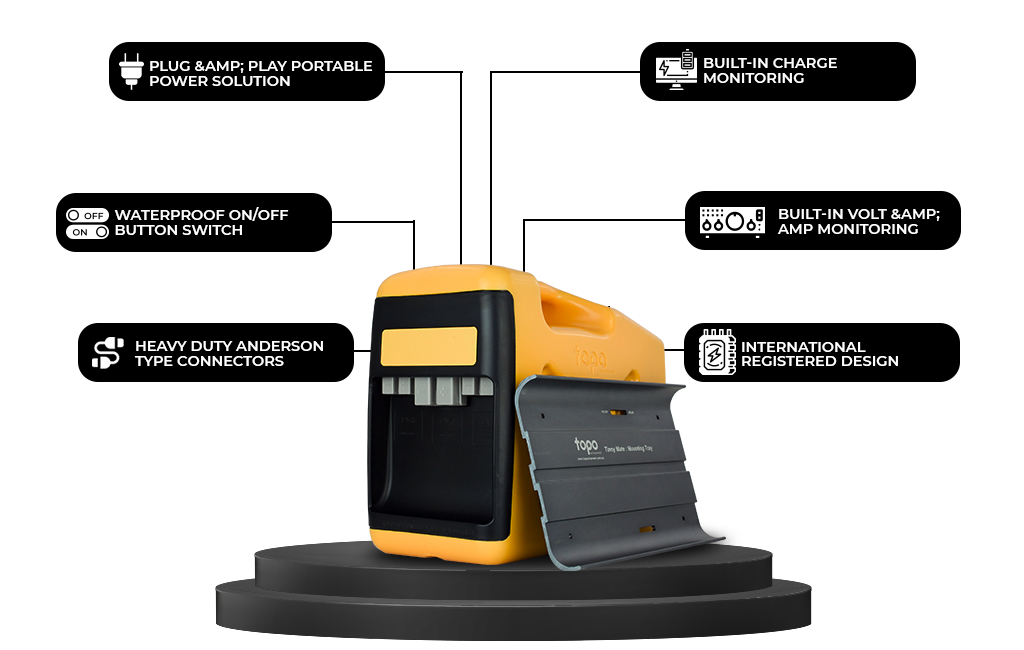

FEATURES

A TRUE PLUG & PLAY PORTABLE POWER SOLUTION
PATENT PENDING & INTERNATIONAL REGISTERED DESIGN
AUSTRALIAN OWNED MADE AND DESIGNED
A GRADE LIFEPO4, PRISMATIC CELLS- IEC 62619 COMPLIANT
POWERFUL AND PORTABLE, 12V/100AH , 1280Wh @ 10Kg’s
SEALED IN A HIGH IMPACT, UV RESISTANCE, WATERPROOF CASING
ACCEPTS 3 WAY CHARGING MAINS, SOLAR, VEHICL

CONNECTOR AND DISPLAY

Power

Waterproof On/Off button switch
Display : Waterproof LCD display
Built-In, State of Charge monitoring
Built-In, Volt & Amp monitoring
Built-In, Charge & Discharge status

Input / Output

Anderson 12V / 50A (Grey)
Anderson 12V / 50A (Grey)
Anderson 12V / 120 A (Grey)

ELECTRICAL PARAMETERS

Nominal Voltage 12.8V DC
Rated Capacity 100Ah
Energy 1280Wh
Cycle life >3000 cycles @ 1C, 80%DOD
Self Discharge < 5% per month
Battery in Series / Parallel 2S/2P
IP Rating IP66

DISCHARGE PARAMETERS

Standard Continuous Discharge Current 50A -100A Max
Pulse Discharge Curent 200A (<30Sec)
Recommended Volt. Disconnect 12V
Discharge Temperature -20 – 60°C
BMS Low Volt. Cut-off 11V DC
BMS High Temperature cut-off 65°C

CHARGE PARAMETERS

Standard Charge Current 50A – 100A Max
Recommended Volt. Disconnect 14.2V DC
Charging Temperature 0 – 55°C
BMS High Volt. Cut-off 14.2V DC
BMS High Temperature cut-off 65°C

DEVICE USAGE

Device	Power Consumption	Estimated Usage
Phone	10Wh	~120+ charges
Fridge	12-30Wh	~40-105 hours
Laptop	75Wh	~16 charges
Mirrorless DSLR	75Wh	~16 charges
Tablet	20Wh	~60 charges
Drone	75Wh	~16 charges
Action Cam	5Wh	~250+ charges
Light	5-10Wh	~125-250 hours
TV (32")	40Wh	~30 hours
Induction Top	1500Wh	~50 minutes of cooking
Electric Kettle	1000Wh	~1.2 hours
Portable Fan	20-50Wh	~25-60 hours
Heated Blanket	50Wh	~25 hours
Speaker (Portable)	20Wh	~60 hours
Electric Cooler	45-60Wh	~20-28 hours

Calculation Details:

Battery Energy: 12.8V × 100Ah = 1280Wh

Device Runtime: Runtime (hours) = Device Power Consumption (W) /Battery Capacity (Wh)
