Topo Centerfire Lithium ,Complete Package includes Mag Series Distribution board and 10A Mains charger

  • Sale
  • Regular price $1,450.00
Tax included. Shipping calculated at checkout.


Model:T-CF-72AH.40

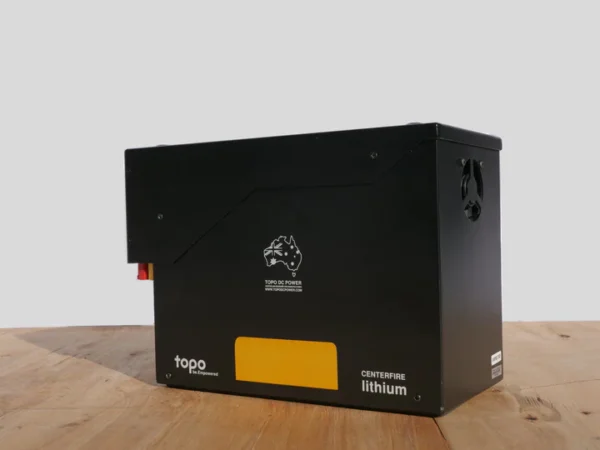

The Centerfire-lithium is the latest in mobile power solutions, size comparable to a 6pack of coldies. Built-in a sturdy steel casing and tailored for adventure on and off the trail, it is one tough and versatile portable power system.

A Vehicles Dual battery system replacement and more!
Flexibility of being charged FAST from mains, vehicle, and solar power sources.

Centerifre lithium is long lasting and weighs in at 10.5 kg(72AH), making it a much lighter alternative to common lead-acid batteries.

A Plug & Play 12v power system , simple, Neat, straightforward, and hassle-free.

Comes complete with Everything you need out the box to get you started - no fuss, as it should be.

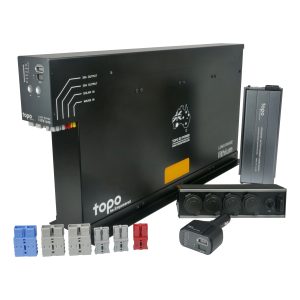

  • a complete lithium system ready to be charged from Vehicle, Solar and Mains.
  • a Topo Mag Series Distribution power board
  • a Topo 10A Mains 240V AC Charger
  • a set of connectors to suit all Input & Outputs

Go farther and stay out longer with the Centerfire Lithium.



Topo's power management system ensures your battery is protected.

  • Protected from over and undercharging and over-discharging.

  • Built-in Audible alarms.

  • Built-in Automatic High and Low Voltage shutdown.

  • Outputs protected with Magnetic circuit breakers.

  • Individually Colour coded, keyed, and clearly labeled Inputs and Output connections for Vehicle, Solar, Mains charging and 12V Output make it truly Plug and Play.

Draw and charge power from your battery safely and keep your fridge, lights, and accessories powered for longer.


Built-in fast charging

  • Utilise Topo's built-in 40Amp DC/DC Charger for Vehicle fast charging. When out on the road where Mains power is non-existent.

  • Topo's built-in Vehicle voltage sense protects your vehicle starter battery from going flat when connected to vehicle charge.

  • Has a dedicated Solar charge input for an unregulated solar power source. So you can charge, collect and store solar power from the sun when stationary to be used later in the evening.

  • Supplied with Topo's 10Amp Mains charger.

Charge from One or ALL input charging sources simultaneously.


Clearly labeled and colour coded Inputs and Outputs

Blue- Vehicle Charge input with built-in 40A DC/DC and Voltage Sense
Red - Regulated Solar input, up to 25amps
Yellow- To suit Topo's Mains Chargers

Grey -  12V DC Outputs
             1x  12V / 50Amp output ( Peak 65 Amp draw)
             2x  12V / 20Amp output ( Combined 40Amp draw)



This version of the Centerfire features:

  • A massive 12V / 72Ah (864 Watt) Lithium Iron Phosphate (LiFePO4) battery,

  • Weighs in at 10.5kg, it is less than a third the weight of a traditional lead battery and size comparable to a 6 pack of coldies.

  • Topo's inbuilt Vehicle charge sense protects the starter battery from going flat,

  • Topo's inbuilt 40Amp DC/DC vehicle charge, with "Voltage Sense"

  • Regulated solar charge input max 25A,

  • Tough 10 Amp mains charger,

  • Topo's Mag series 12Volt distribution board,

  • A handle that folds flat, allowing for easy transport and storage with no wasted space.

  • Clearly labled and Easy access to Centerfire charging inputs and outputs.



Packing List:

1x User Manual

1 x Topo 12V/ 72Ah Centerfire Lithium,
      Model: T-CF-72AH.40

1 x Topo Magnetic Distribution Power board,
      and short 35A Grey mini connector to 35A Black mini connector to suit
      Option A: ( CIGA, CIGA, CIGA Socket)
      Option B: ( CIGA, CIGA, ENGEL socket)

1 x Topo Centerfire Battery Charger/Power supply and leads to suit,
      Model: T-PS-1210

1 x Centerfire connector pack
      1 x Red 35A Connector (Solar)
      1 x 50A Blue Anderson type connector (Vehicle)
      2 x 35A Grey mini connectors ( Output)
      1 x 50A Grey Anderson type connector ( Output)


For any additional queries and questions, please contact us.




Technical Data

Part Number

T-CF-72AH.40

Dimensions (L x W x H)

L29cm x W14cm x H21cm

Weight

10.5kg Centerfire unit only

Battery

LiFeP04

Capacity

12v 72AH (864Wh)

Part Number

T-PS-1210

Dimensions

24cm x 8cm x 5cm

Weight

0.7kg

Input

240V AC

Output

15V DC / 10A



For additional product features and specifications, please visit here
